Free Download Udemy - Electronics Semiconductors and PN Junction Diode
Published: 3/2025
Created by: Sanjeev Kumar
MP4 | Video: h264, 1280x720 | Audio: AAC, 44.1 KHz, 2 Ch
Level: Beginner | Genre: eLearning | Language: English | Duration: 56 Lectures ( 4h 50m ) | Size: 2 GB
Fundamentals of Semiconductors | PN Junction Diode | Diode Rectifier Circuits | Clipper | Clamper | Zener Diode
What you'll learn
Introduction to Semiconductors
PN junction diode
Diode rectifier circuits
Wave shaping circuits
Zener diode
Requirements
Engineering students pursuing their Bachelor's degree and Master's degree.
Description

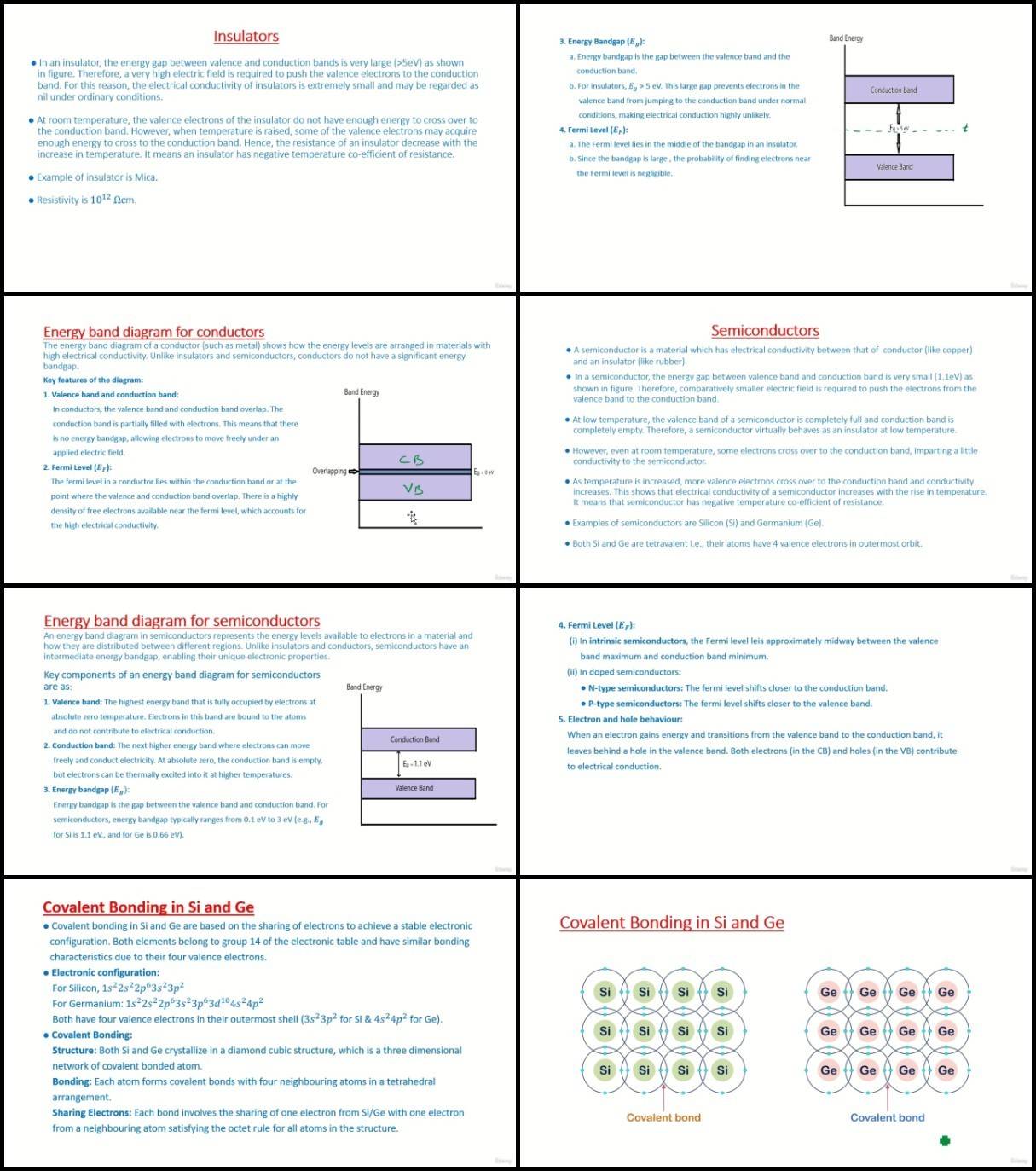

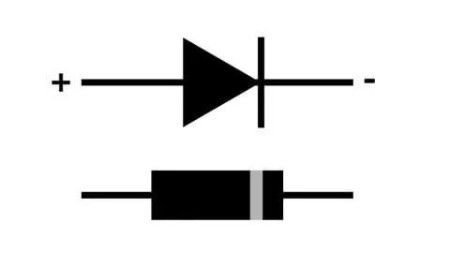

A semiconductor is a material whose electrical conductivity lies between that of a conductor and an insulator. Semiconductors have unique properties that make them ideal for controlling electrical current. Their conductivity can be manipulated by adding impurities (doping) or by applying electrical fields, light or heat.Types of Semiconductors:1. Intrinsic semiconductors: Pure semiconductors (e.g. Si and Ge).2. Extrinsic semiconductors: Doped semiconductors with added impurities to increase conductivity. a. n-type semiconductors: Doped with elements that added extra electrons (negative charge carriers). b. p-type semiconductors: Doped with elements that create holes (positive charge carries)Semiconductors are the foundation of modern electronics used in diodes, transistors, ICs and LEDs.A diode is a two terminals electronics device made from a semiconductor. Its primary function is to allow current flow in one direction and block it in opposite direction. A diode is Created by: joining a p-type semiconductor with an n-type semiconductor, forming a PN junction. Working principle of a PN junction diode:a. Forward Bias: When the positive terminal of a battery is connected to the p-side and the negative terminal is connected to the n-side, the diode allows current to flow.b. Reverse Bias: When the polarity is reversed, the diode blocks the current to flow.Applications of a PN junction diode are rectification, Clipper, clamper, protection circuits, signal demodulation and light emission. We will discuss rectification and wave shaping circuits applications in detail in this course.In this course, you will learn aboutSection-1: Introduction to Semiconductors1. Classification of solids on the basis of energy bands2. Types of semiconductors3. Equilibrium carrier concentration4. Direct and indirect band gap semiconductors5. Carrier Transport6. Einstein's Relation in semiconductors7. Example of semiconductorsSection-2: PN Junction Diode8. Working of PN junction diode9. Built in potential10. Width of depletion region11. Diode current-voltage relation12. V-I characteristics of diode13. Example of PN junction diode14. Diode equivalent circuit15. Load line analysis16. Small signal model of diode17. Example of diode's circuitSection-3: Diode Rectifier Circuits18. Rectifier circuits19. Half-wave rectifier20. Full-wave rectifier22. Centre tapped transformer rectifier21. Half wave rectifier with capacitor filter23. Full wave rectifier with capacitor filter24. Example of a Centre tapped full-wave rectifier25. Bridge rectifier Vs Centre tapped transformer rectifierSection-4: Wave Shaping Circuits26. Wave shaping circuits27. Clipper Circuits28. Series positive clipper29. Series negative clipper30. Series positive clipper with positive bias31. Series positive clipper with negative bias32. Series negative clipper with positive bias33. Series negative clipper with negative bias34. Shunt positive clipper35. Shunt negative clipper36. Shunt positive clipper with positive bias37. Shunt positive clipper with negative bias38. Shunt negative clipper with positive bias39. Shunt negative clipper with negative bias40. Dual clipper41. Clamper circuits42. Positive clamper43. Negative clamper44. Positive clamper with positive bias45. Positive clamper with negative bias46. Negative clamper with positive bias47. Negative clamper with negative bias48. How can you create a dual clipper?Section-5: Introduction to Zener diode49. Zener diode50. V-I characteristics of Zener diode51. Zener diode Vs Normal diode52. Temperature Effects53. Specifications of Zener diode54. Basic Zener regulator circuits55. Example of Zener diode circuit56. Advantages, disadvantages and applications of Zener diode
Who this course is for
Beginners students to old pro who want to understand or review semiconductors and PN junction diode.
