Ansys Cfd For Real-World Applications
Published 1/2025
MP4 | Video: h264, 1920x1080 | Audio: AAC, 44.1 KHz
Language: English | Size: 2.27 GB | Duration: 5h 30m
Students will learn the application of ANSYS CFD in obtaining advanced solutions.
What you'll learn
Water Pipe Analysis
Design of Models
Nozzle Analysis
Airofoil Analysis
Requirements
Basics knowledge of Fluid Mechanics
Knowledge of numerical method of FEA
Description
This course is the first part of the lecture series on ANSYS CFD software. It takes you through various topics like Design of Models in ANSYS Workbench, Water Pipe Analysis, Nozzle Analysis and Airfoil Analysis. Various numerical are solved to explain various concepts and features of the software and for practice so that expertise can be gained in handling the software. We start with Water Pipe Analysis where we analyse commercial water pipes, pipe with sudden expansion, pipes with sudden contraction, pipe with 90 degree and 45 degree bend, Y shaped, T shaped and branch pipe.Second section deals with Design of Models in ANSYS Workbench Static Structural Analysis. This module explains how to draw basic geometry using Design Modeler the various models namely, pipe with 90 degree and 45 degree bend, Y shaped, T shaped, branch pipe, venturimeter and orificemeter.Third section is all about the Nozzle Analysis. Various numericals are solved for like Divergent nozzle, Convergent Nozzle, Convergent-Divergent Nozzle, Venturimeter and Orificemeter. Last section deals with Airfoil Analysis. It involves the generation of NACA 0012 and NACA 2414 airfoils and their 2D and 3D analysis respectively.Basic version of this course is available in the previous part of this series ANSYS Workbench Tutorials. Advanced version of the courses are also available namely, Advanced Structural Analysis, ANSYS Workbench Tutorials Part-II, ANSYS Workbench Tutorials Part-III, ANSYS Workbench Tutorials Part-IV, ANSYS Workbench Tutorials Part-V and ANSYS Workbench Tutorials Part-VI. Join those course to learn the basic concepts of these modules and more.
Overview
Section 1: Water Pipe Analysis
Lecture 1 Commercial Water Pipes
Lecture 2 Pipe with sudden contraction
Lecture 3 Pipe with sudden expansion
Lecture 4 Pipe with 90 degree bend
Lecture 5 Pipe with 45 degree bend
Lecture 6 Y shaped Pipe Analysis 1
Lecture 7 Y shaped Pipe Analysis 2
Lecture 8 Y shaped Pipe Analysis 3
Lecture 9 T shaped Pipe Analysis 1
Lecture 10 T shaped Pipe Analysis 2
Lecture 11 T shaped Pipe Analysis 3
Lecture 12 Branch Pipe Analysis 1
Lecture 13 Branch Pipe Analysis 2
Lecture 14 Branch Pipe Analysis 3
Section 2: Design of Models
Lecture 15 Pipe with 90 degree bend
Lecture 16 Pipe with 45 degree bend
Lecture 17 Y-Shaped Pipe
Lecture 18 T-Shaped Pipe
Lecture 19 Branch Pipe
Lecture 20 Venturimeter
Lecture 21 Orifice Meter
Section 3: Nozzle Analysis
Lecture 22 Divergent Nozzle
Lecture 23 Convergent Nozzle

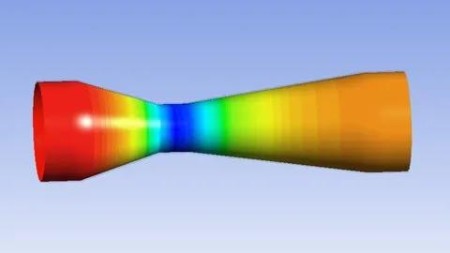

Lecture 24 Convergent-Divergent Nozzle
Lecture 25 Venturimeter
Lecture 26 Orificemeter
Section 4: Airfoil Analysis
Lecture 27 NACA 2414 Airfoil generation
Lecture 28 NACA 2414 Airfoil 3D Analysis
Lecture 29 NACA 0012 Airfoil generation
Lecture 30 NACA 0012 Airfoil 2D Analysis
Designers,Engineering Students(Undergraduate, Master and Ph.D.),Consultants

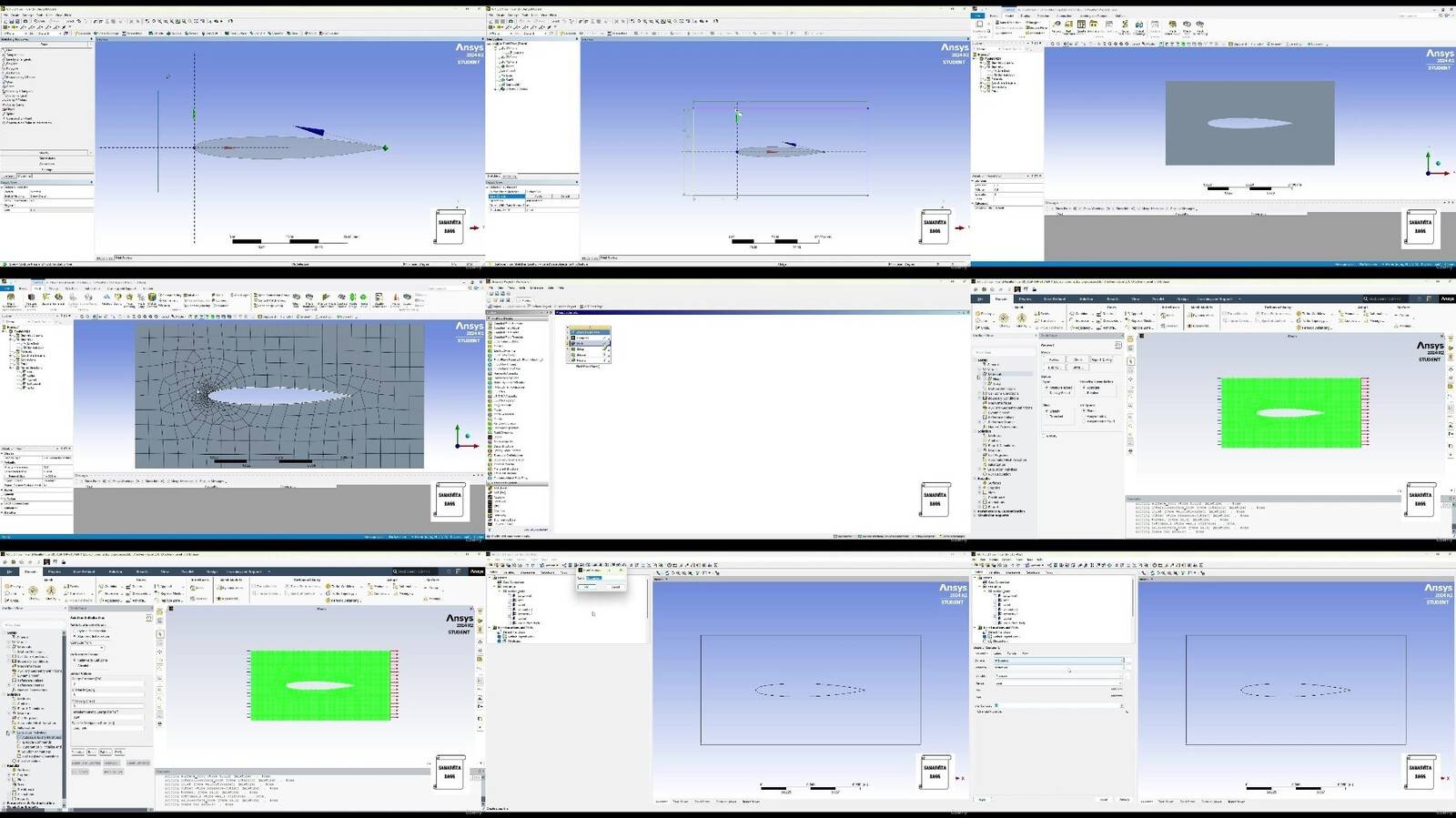

Screenshot
